Versatility comes in standard
SureSeal™ SE160 is designed in consideration of multi tube sealing environment.
It provides an ideal space-efficient solution.
Features
• Premium sealing quality - new wide-sealing technology
• Adjustable Power Mode - the world-first sealing optimization technology.
One sealer guarantees the best result with any blood bag in the market

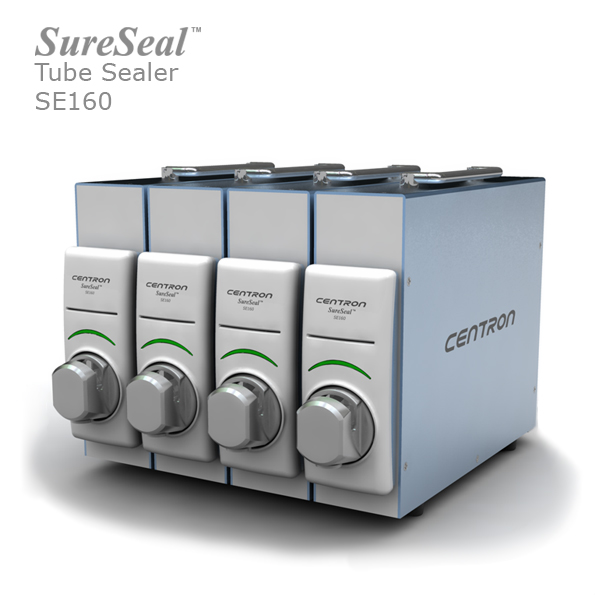

• Multi tube sealer set up - automatic sequential sealing
• Variable sealing spacing : 75, 80, 85, 90, 95 mm
(or, any distance up to 200 mm upon request)
• Simple operation, fast sealing, no warm-up required
• Sealing hand unit ready
• Automatic tubing detection
• Arc detection
• LED indicator to show sealing progress and alarms
• Applicable to wide range of blood bag tubing
• Head protector / Splash guard for user safety

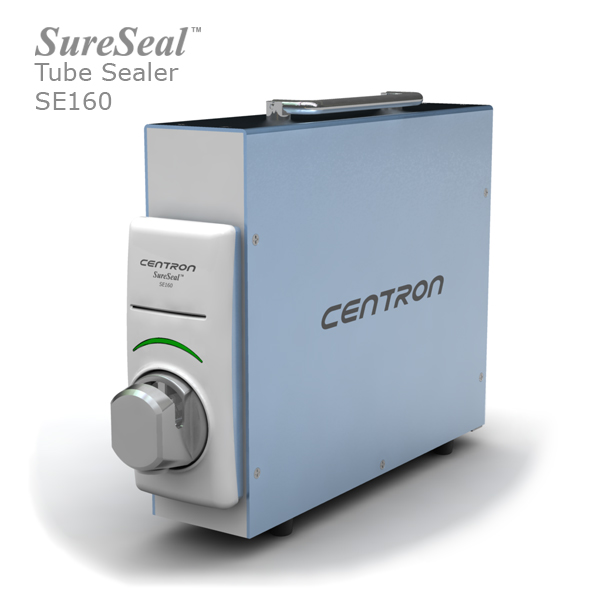

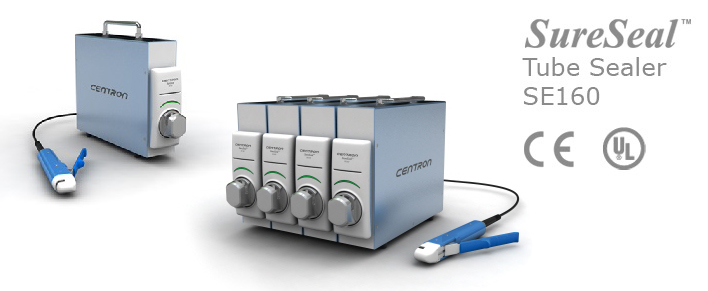

SureSeal™SE160 is AC powered benchtop tube sealer with integrated sealing head and
optional sealing hand unit. New sealing technology and enhanced reliability make SE160 ideal
for the most demanding environments.
New state-of-the-art sealing head
• New sealing technology ensures safe sealing of even thick and sensitive tubings with wide
sealed surface.
• Adjustable Power Mode - User can easily choose sealing power output according to blood bag
maker, type and operating conditions. Combined with existing micro-tuning optimization process,
user can always expect reliable outcome. Please provide us with blood bag infomation and
operating condition for recommended power mode.
• Sealing will automatically start when tubing is placed in the sealing head.
• Head protector for safe and easy operation - detachable, easy to clean
• Applicable tubing diameter 2-6mm (1/4”)
* Splash guard
- protects users from accidental blood splash
- Detachable, easy to clean
* Indication lamp
- shows sealing progress
* Wide sealed surface with notch at the center
- Reliable sealing quality prevents leakage
- Easy to segment

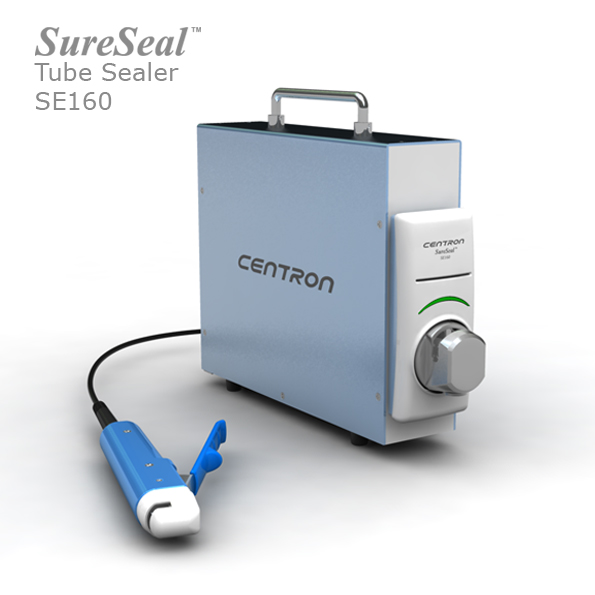

Sealing hand unit ready
• Additional plug-in type SureSeal™ sealing hand unit
• Ergonomic design with standard 1.8m (6ft) cable
• Satisfying various operating conditions
Please see our e-brochure in Downloads tab for more information.
