The global standard for automated blood collection mixer

Features

  • Automatically clamps blood bag tubing when collected blood volume reaches
     preset volume. Preset volume is user-selectable.
  • Rocks to mix collected blood with anticoagulant in the blood bag.
  • LCD panel displays collected blood volume, preset volume to collect, total
     weight of collected blood and blood bags, elapsed time of donation and alarm
     symbols.
  • Audible and visual alarm signals at the end of collection, at abnormal blood flow
     and at low battery condition.
  • Large tray. Up to quadruple blood bags can be used.
  • Automatically tares weight of blood bags to measure net volume of collected
     blood.
  • Clamping module is detachable, so can be mounted either left side or right side.
  • Fully portable with a rechargeable and replaceable battery pack.
  • Both built-in charger and a separate charger unit included.
  • Canvas carrying bag included.
  • Lightweight, battery operation, carrying bag - a convenient machine
     for mobile units.

Please see our e-brochure in Downloads tab for more information.

Click to see larger image

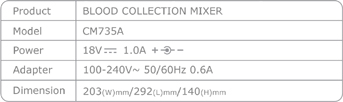

Specification

Accessory


Battery pack	Charger unit	Charging adapter	Carrying bag

Optional Devices

	• Battery Charger BC162 - charges 6 battery packs same time. - 1 pack with fast charging in 1 hour, 5 packs with standard charging. - has thorough-discharging feature that refreshes used battery packs.
	• Battery Charger BC142 - charges 4 battery packs with standard charging in 10 hours. - It's a simple device to reduce the number of wall outlet. - useful for mobile teams preparing many spare battery packs.

For package customization and recommendation, please contact us.

CM735A e-Brochure

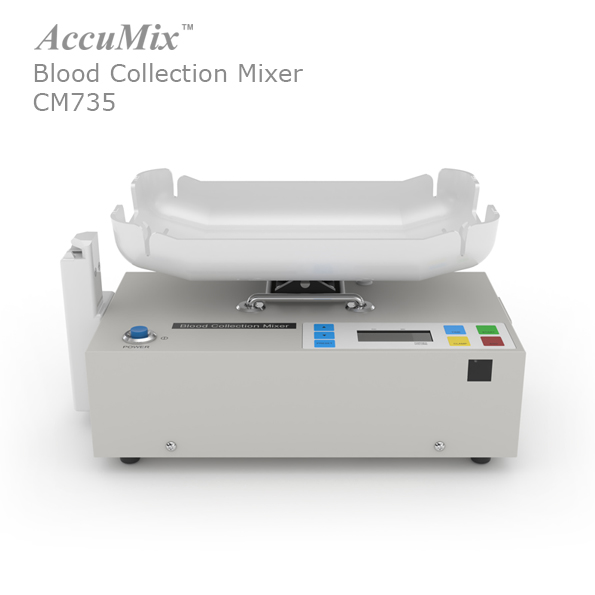

Image 1 (595 * 595 Pixel) - Blood Collection Mixer CM735A

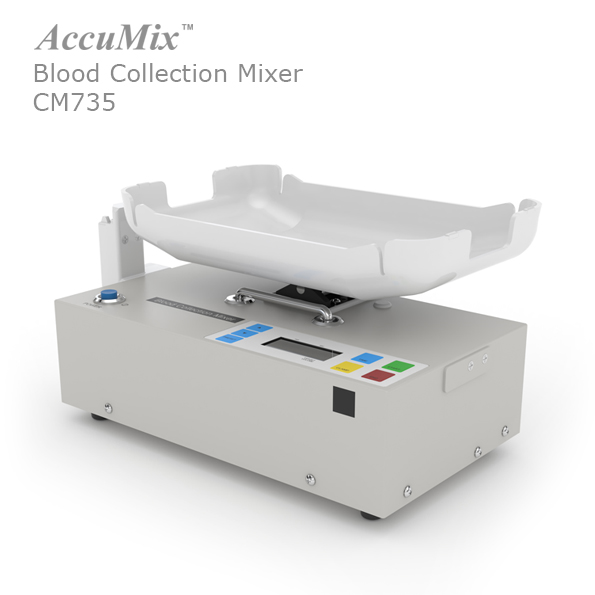

Image 2 (595 * 595 Pixel) - Blood Collection Mixer CM735A

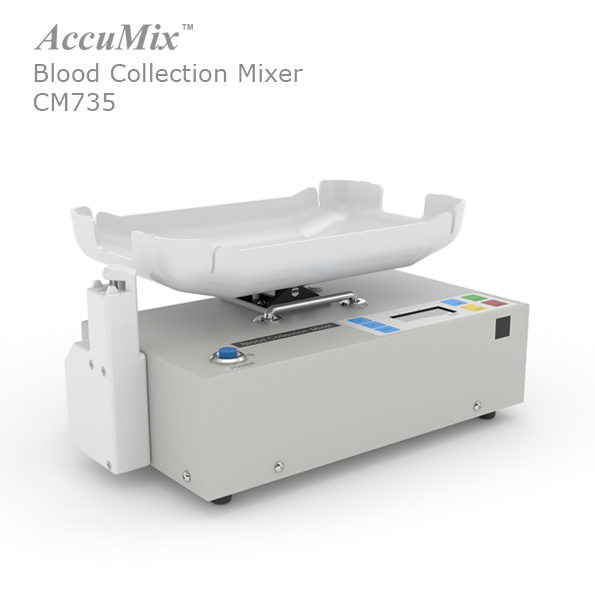

Image 3 (595 * 595 Pixel) - Blood Collection Mixer CM735A
